Protect against stone chips – Buy stylish hood guards here 🛡️

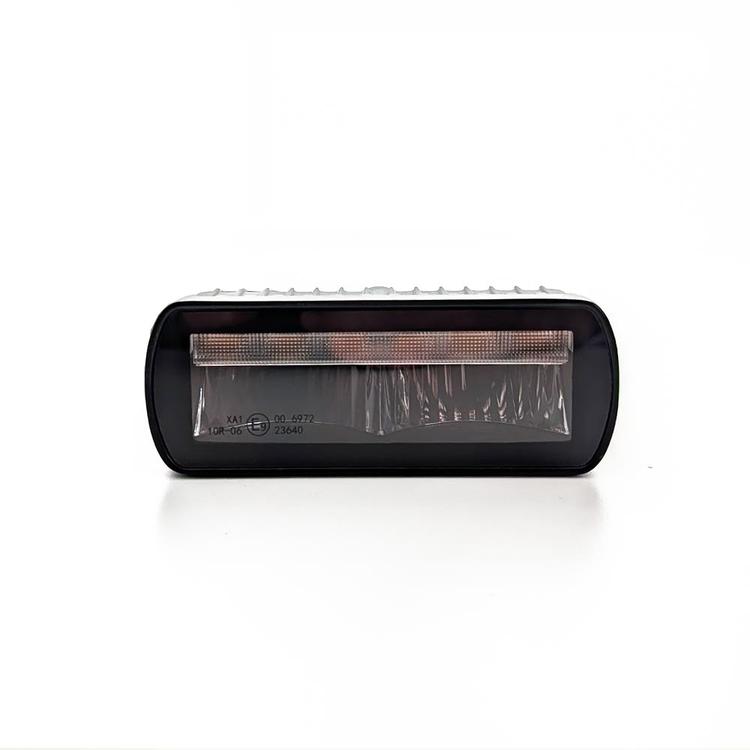

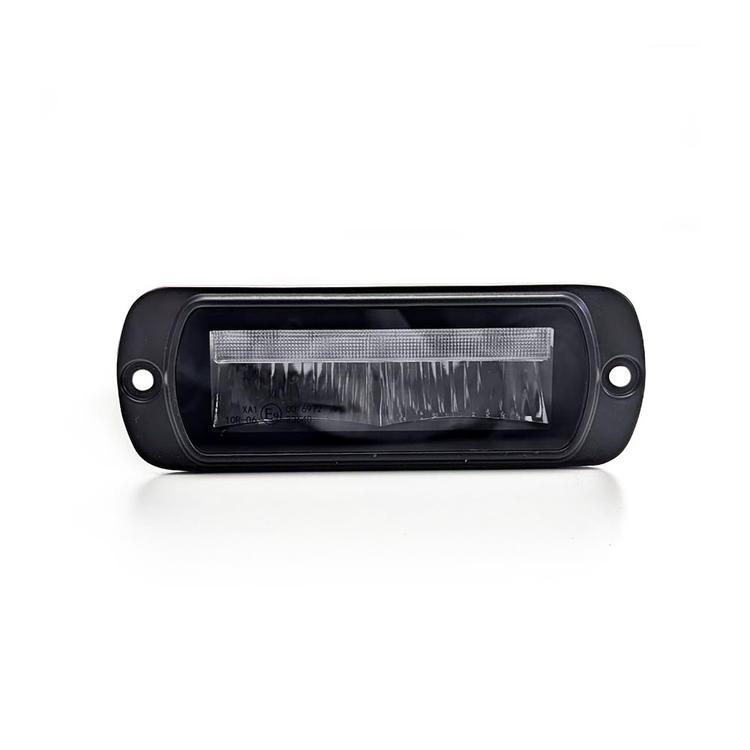

Looking for a versatile and powerful reversing light for your vehicle? Ledson Helix is the solution! This E-marked reversing light illuminates behind you with impressive brightness, while being equipped with an approved flash light. With two functions in one, you save both space and time during installation. Helix can be easily mounted in several ways - upright, suspended or recessed - to suit your vehicle and needs.
Key features:
E-marked reversing light with integrated approved flashing light Certifications: ECE R23, R65, R10 and CISPR25 class 3 Bracket for vertical, hanging and recessed mounting included Flood light pattern for wide light distribution Impressive brightness: 3200 lumens (theoretical), 2700 lumens (actual) Side-reflecting optical system Electronic thermal management for longer life Cool white light of 6000K
Technical information:
LED configuration: 4 x 8 W (reversing light) + 4 x 3 W (flash light) Power consumption: 1.9 A at 12 V and 1 A at 24 V IP rating: IP69K (water and dust proof) Voltage range: 9-36 V Equipped with a 4-pin DT connector to protect against moisture DT female included
Dimensions and weight:
Width: 164 mm Height: 41 mm (without bracket) Depth: 61 mm Cable length: 30 cm Weight: 393 g
Installation:
Red: Backlight (+) Black: Reversing light (- earth) Yellow: Warning/flash light (+) Green: Sync (+) when using multiple lights
Important! Do not cut the DT connector, as this increases the risk of moisture damage and may void the warranty.

Ledson Helix combines powerful reversing light and approved flash light in one handy unit. With its flexible mounting and impressive brightness of up to 3200 lumens, it is perfect for those who want to optimize both visibility and safety. ECE approved and IP69K rated for maximum durability and reliability in all conditions.

33490605-Manual-SWE

33490605-Manual-ENG

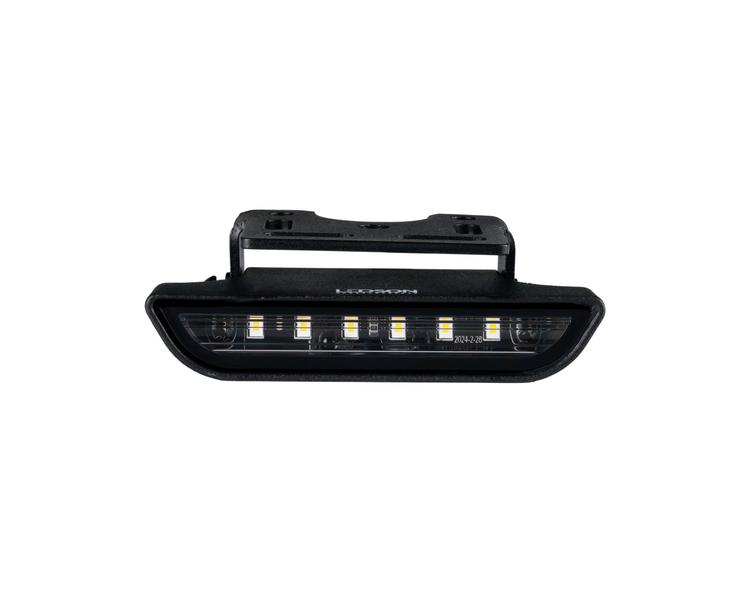

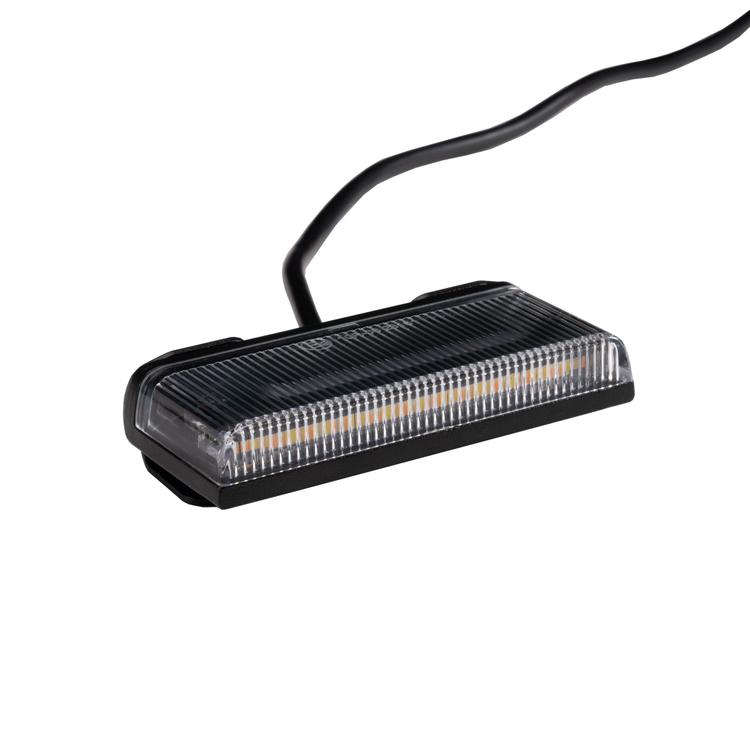

Backlight Nano from Ledson offers a powerful lighting solution in an ultra-compact format. With a height of only 17 mm, this reverse light is discreet when mounted, yet delivers a bright light with a wide light pattern of 140°. It gives you excellent visibility behind the vehicle when reversing, while remaining barely visible when not in use.
This model is E-marked and approved according to ECE R23, which means that it meets all requirements for use as a reversing light. Nano is both stylish and functional, with a design that easily blends into the vehicle without compromising performance.
<h3>Specifications</h3>
<ul>
<li>E-marking: ECE R23 (approved as reversing light)</li>
<li>Range: 31 meters (1 lux)</li>
<li>Luminous flux: 2800 lumens (actual 1750 lumens)</li>
<li>Light distribution: 140° wide light pattern</li>
<li>Color temperature: 5000K</li>
<li>Power: 30W (6 x 5W LED)</li>
<li>IP class: IP68 (water and dustproof)</li>
<li>Electronic heat management to ensure long-lasting performance</li>
<li>Voltage: 9-36V (2A at 12V and 1A at 24V)</li>
<li>EMC-safe: ECE R10 for electromagnetic compatibility</li>
</ul>
<h3>Dimensions</h3>
<ul>
<li>Width: 86 mm</li>
<li>Height: 17mm (26mm with bracket)</li>
<li>Depth: 44 mm</li>
<li>Cable: 30 cm with 2-pin DT connector</li>
</ul>
Important: Do not cut the DT connector, as this may increase the risk of moisture damage and void the warranty. A DT connector (male) with joint is included.

The Nano reversing light from Ledson is a compact and powerful solution for optimal lighting when reversing. With its discreet design and wide light pattern of 140°, it offers excellent visibility without being visible when not in use. E-marked and approved according to ECE R23, with high water and dust resistance (IP68).
